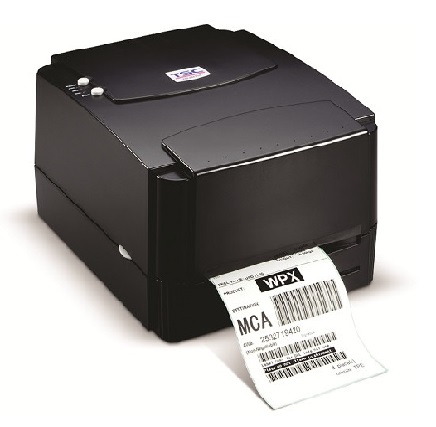

TSC TTP 244 PRO

TSC TTP 244 PRO

15000

Resolution 8 dots/mm (203 DPI)
Printing method Thermal Transfer & Direct Thermal
Max. print speed 127 mm (5”)/second
Max. print width 108 mm (4.25“)
Max. print length 2,286 mm (90“)
Enclosure ABS plastic
Physical dimension 232 mm (W) x 156 mm (H) x 288 mm (D)
9.13“ (W) x 6.14“ (H) x 11.34“ (D)
Weight 2.5 kg (5.51 lbs)
Label roll capacity 110 mm (4.33“) OD
Ribbon 300 m long, max. OD 67 mm, 1“ core (ink coated outside)
Ribbon width 40 mm ~ 110 mm (1.6” ~ 4.3”)
Processor 32-bit RISC CPU
Memory
• 4 MB Flash memory
• 8 MB SDRAM
• SD card reader for Flash memory expansion, up to 4 GB (user option)
Interface
• USB 2.0
• RS-232
• Centronics (factory option)
• Bluethooth (user option)
Power
External universal switching power supply
• Input: AC 100-240V, 2.5A, 50-60Hz
• Output: DC 24V, 2.5A, 60W
Operation switch, button,
LED 1 power switch, 1 feed button & 3 LED (Power, Error, On-line)
Sensors
• Gap transmissive sensor
• Black mark reflective sensor
• Ribbon end sensor
Internal fonts • 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code
• 1D bar code
Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8,
EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET,
RSS-Stacked, GS1 DataBar, Code 11
• 2D bar code
PDF-417, Maxicode, DataMatrix, QR Code, Aztec
Font and barcode rotation 0, 90, 180, 270 degree
Printer language TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Media type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width 25.4 ~ 112 mm (1.0” ~ 4.4”)
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter 25.4 ~ 76.2 mm (1” ~ 3”)
Label length 10 ~ 2,286 mm (0.39“ ~ 90“)
Environment condition Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10~ 90% non-condensing
Safety regulation FCC Class A, CE Class A, C-Tick Class A, TÜV/Safety, CCC
Environmental concern Comply with RoHS, WEEE
