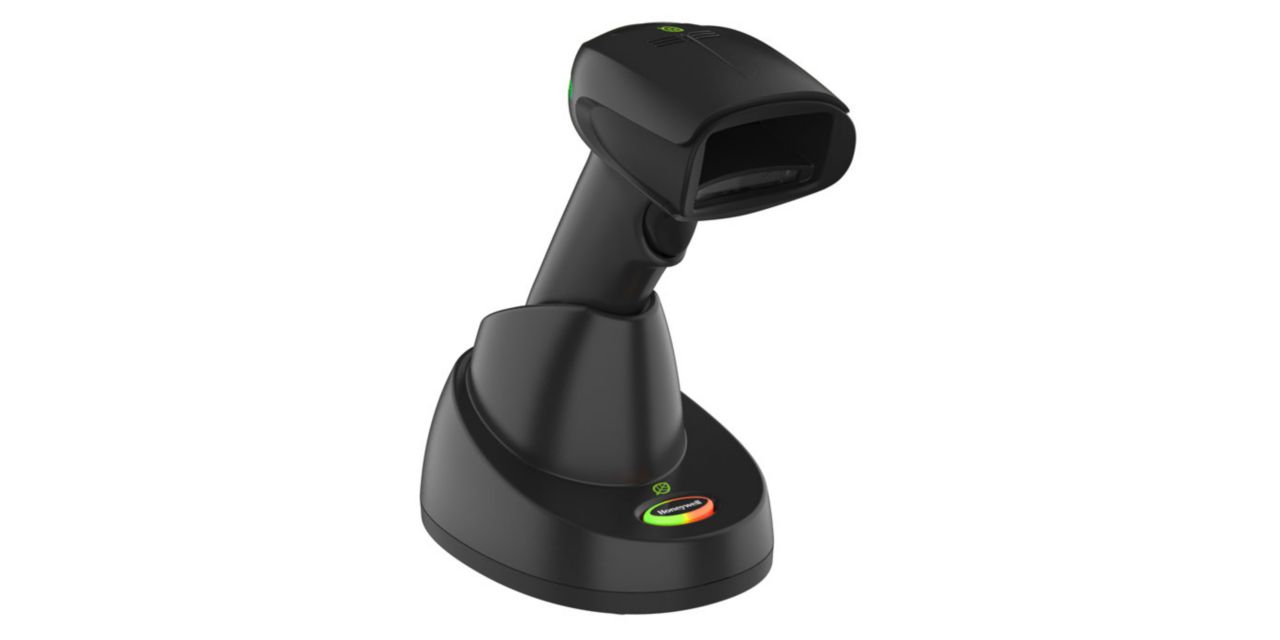

Honeywell 1952g Xenon

Honeywell 1952g Xenon

Honeywell 1952g Xenon

SCANNING SPECIFICATIONS

Motion Tolerance
Up to 400 cm/s 157 in/s for 13 mil UPC at optimal focus

Brightness
0 to 100,000 lux
9,290 ft-candles

Skew
±65°

Number of Scans
Typically more than 490 scans

Scan Pattern
Area ImageNEWLINE1280 x 800 pixel array

Decode Capability
1D/2D

Pitch
±45°

Scanning Range
High density HD
Standard range SR

Print Contrast
20% minimum reflectance difference

NETWORK

Bluetooth
Yes

Bluetooth Specifications
2.4 GHz ISM Band Adaptive Frequency Hopping Bluetooth v4.2

HARDWARE

Wireless
Class 2: 10 m 33 ft line of sight

Host System Interface
IBM 46xx RS485
RS-232
Keyboard Wedge
USB

ELECTRICAL

Operating Power
5W 1A @ 5V

Standby Power
0.5W 0.1A @ 5V

ENVIRONMENTAL

Storage Temperature Range
-40°F to 158°F
-40°C to 70°C

Operating Humidity
0 to 95% relative humidity, non-condensing

Operating Temperature
32°F to 122°F
0°C to 50°C

STANDARDS & APPROVALS

Protection Ratings
IP52

Drop Specifications
Designed to withstand 50 1.8 m 6 ft drops to concrete

SERVICE TERMS

Warranty Duration
Three-year factory warranty

OTHERS

Power Connector Type
Cordless
