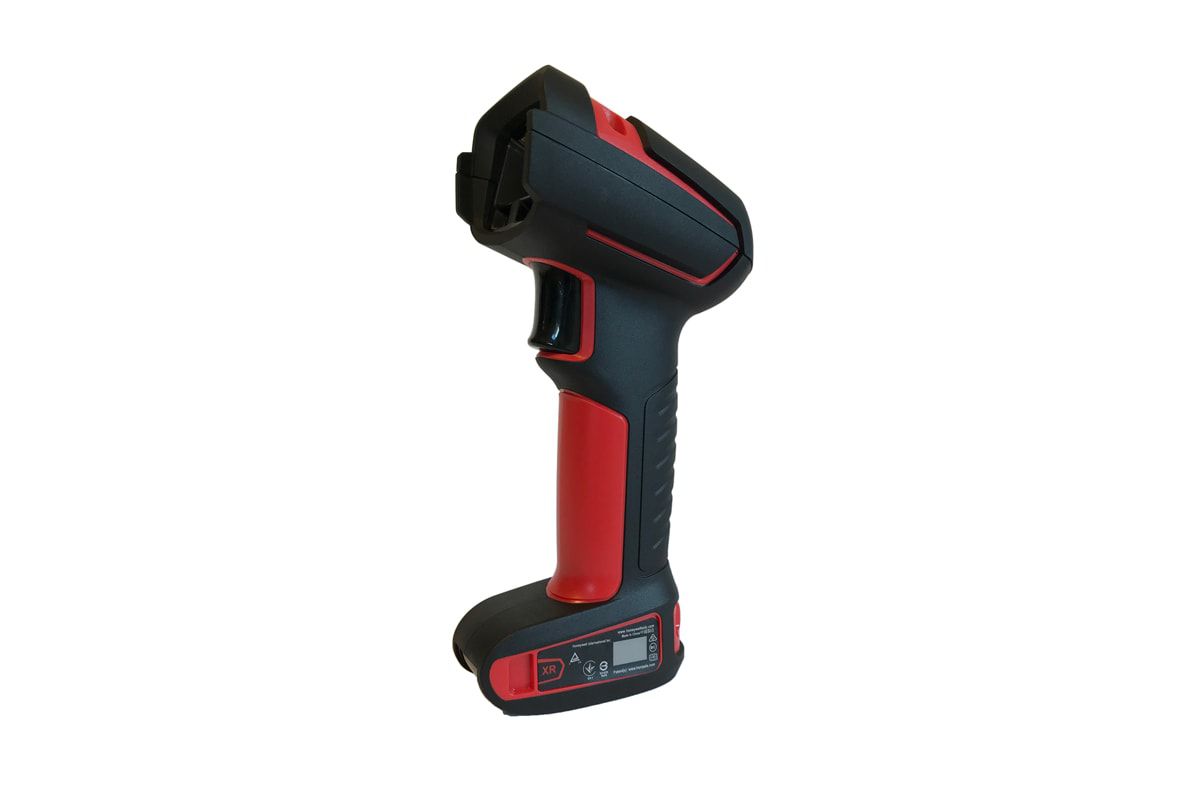

Honeywell Granit 1990iSR

Honeywell Granit 1990iSR

Honeywell Granit 1990iSR

SCANNING SPECIFICATIONS

Skew
65°

Decode Capability
1D/2D

Motion Tolerance
4500 mm/s
177 in/s

Scan Pattern
Area Imager 1280 x 800 pixel array

Brightness
0 - 100,000 lux
9,290 foot-candles

Scanning Range
Standard range SR

Print Contrast
20% minimum reflectance difference

NETWORK

Bluetooth
No

HARDWARE

Host System Interface
RS-232 TTL
USB
Keyboard Wedge

ELECTRICAL

Standby Power
0.5 W

Operating Power
2.35 W 470 mA @ 5 VDC

Input Voltage
4.0 VDC to 5.5 VDC

ENVIRONMENTAL

Operating Temperature
-30°C - 50°C
-22°F - 122°F

Operating Humidity
Up to 95% relative humidity, non-condensing

Storage Temperature Range
-40°C - 70°C
-40°F - 158°F

STANDARDS & APPROVALS

Tumble Specifications
7,000 1 m 3.3 ft tumbles

Drop Specifications
2 m 6.5 ft: 50 drops from -30°C toNEWLINE50°C -22°F to 122°F, uncontrolled RH
2.4 m 8 ft: 20 drops at 25°C 77°F, 55% RH
3 m 10 ft: MIL-STD-810G, 25°C 77°F, 55% RH

SERVICE TERMS

Warranty Duration
Three-year factory warranty

OTHERS

Power Connector Type
Corded
