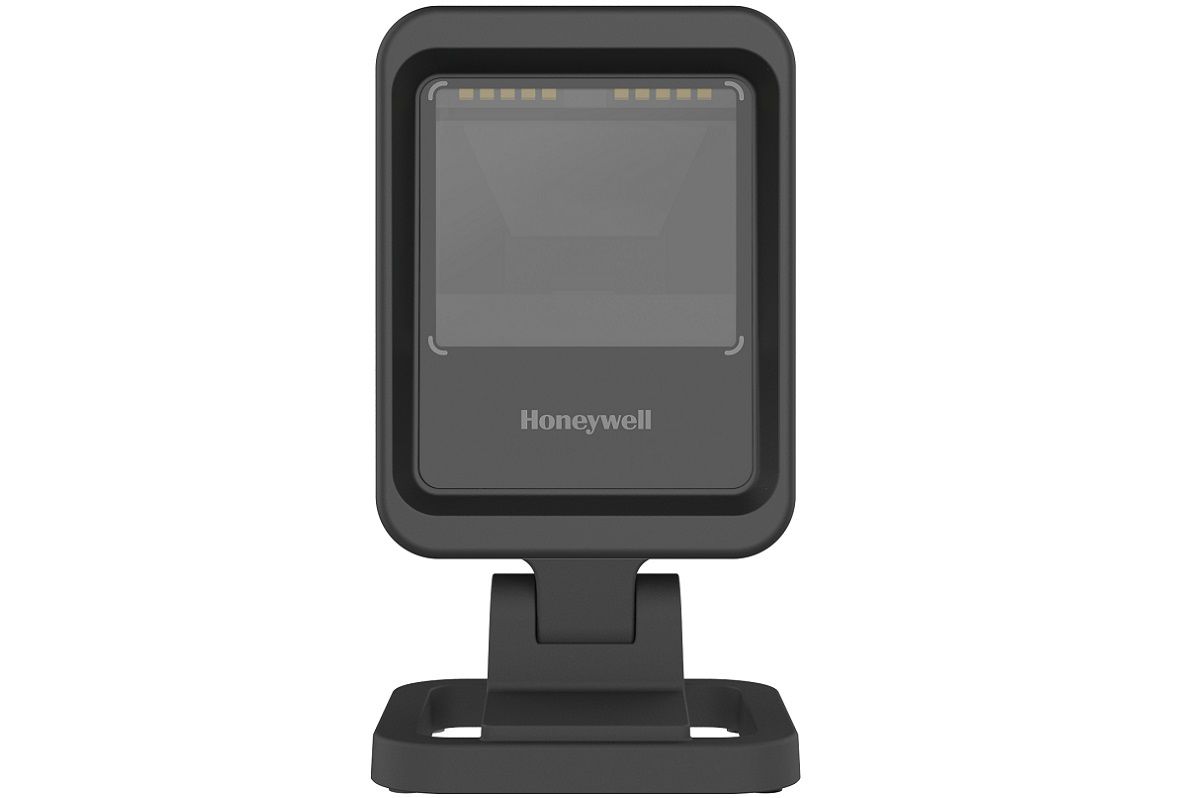

Honeywell Genesis XP 7680g

Honeywell Genesis XP 7680g

Genesis XP 7680g

FEATURES

Form Factor
Hands Free

Features
Fantastic User Experience
Increased Productivity
Flexibility and Adaptability

Application
Hands-Free, Presentation Scanning

DIMENSIONS

Weight
12 oz
340 g

Overall Dimensions
3.2" x 1.6" x 4.1" no stand; 3.2" x 1.6" x 5.7" with stand
80 mm x 40 mm x 105 mm no stand; 80 mm x 40 mm x 145 mm with stand

SCANNING SPECIFICATIONS

Pitch
65°

Skew
65°

Scanning Range
Standard range SR

Scan Pattern
Area Image, 1,280 x 800 pixel

Maximum Brightness
100,000 Lux

Decode Capability
1D/2D

Print Contrast
20% minimum reflectance difference

Motion Tolerance
400 cm/s for 13 mil UPC at optimal focus

HARDWARE

Engine Type
1D/2D

Host System Interface
USB, RS-232, Keyboard Wedge, IBM 46xx RS-485

ELECTRICAL

Operating Current
2.0 W 400 mA @ 5V

Input Voltage
5.0V DC Typical

ENVIRONMENTAL

Operating Humidity
0% to 95% relative humidity, non-condensing

Storage Temperature Range
-40° F - 158° F
-40°C to 70°C

Operating Temperature
0°C to 50°C
32° F - 122° F

SERVICE TERMS

Warranty Duration
3 Years

OTHERS

Power Connector Type
Corded
