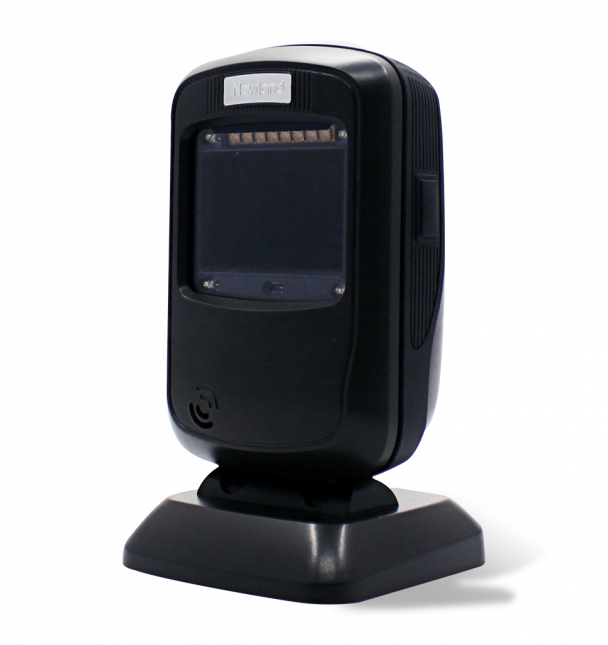

Newland FR40 Koi

Newland FR40 Koi

Technical specifications

Performance
Image Sensor 1280x800 CMOS
Illumination White LED
Depth of Field EAN 13 (13mil) 5-195mm
Depth of Field QR (15mil) 5-165mm
Minimal Print Contrast 25%
Scan Angle Roll 360°
Scan Angle Pitch ±50°
Scan Angle Skew ±45°
Field of View Horizontal 51°
Field of View Vertical 32°
Motion Tolerance 2.5m/s
Data Capture
1D All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.
2D All major 2D symbologies, including PDF417, Data Matrix, QR Code, Micro QR Code, Aztec.
Physical
Dimensions (mm) 83(W)x81(D)x148(H)mm
Weight 293g
Interfaces RS-232, USB
Notifications Beep, LED indicator
Input Voltage 5VDC±5%
Current @ 5VDC Operating 219mA (typical)
Power Consumption 1041mW (typical)
Environmental
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 70°C
Humidity 5% to 95% (non-condensing)
Electro Static Discharge (ESD) ±14 kV (air discharge), ±8 kV (direct discharge)
Drop 1.2m
IP Rating IP52
Software
Configuration Tools EasySet
Certifications
Hardware FCC Part15 Class B, CE EMC Class B
Warranty
Standard 5 years
