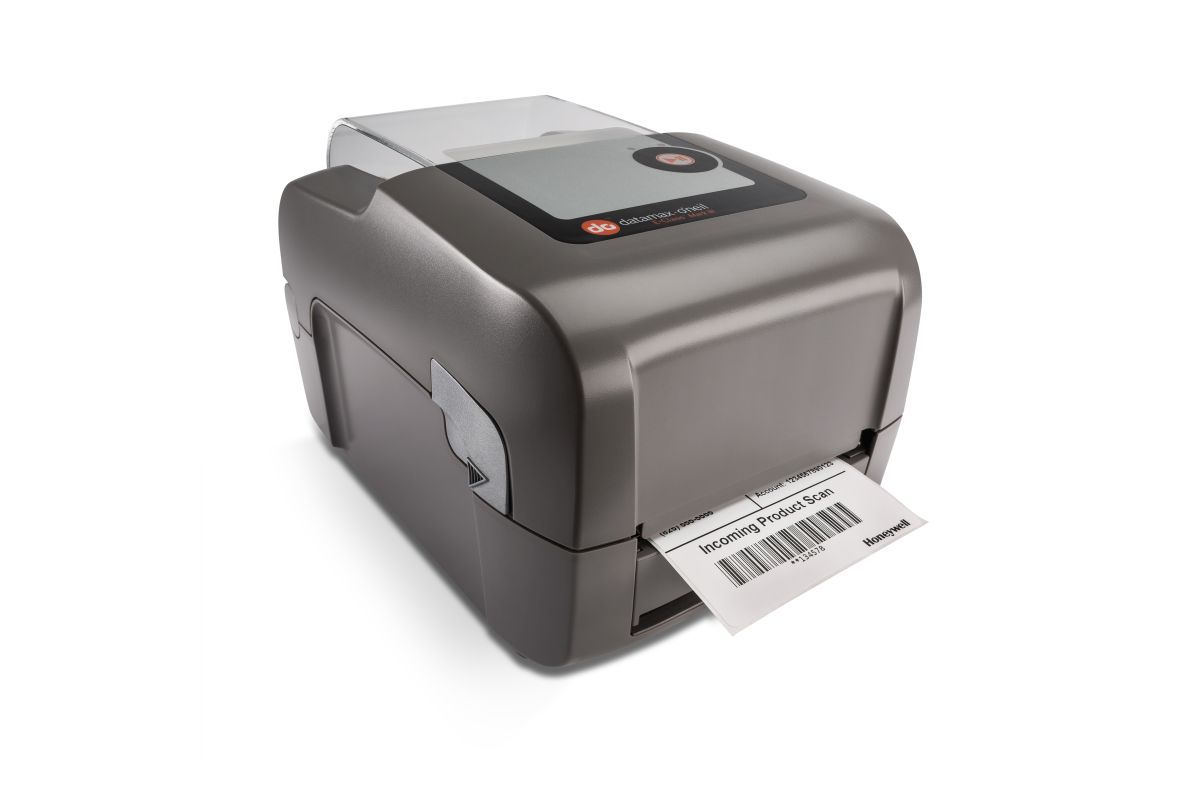

Honeywell E-Class Mark III

Honeywell E-Class Mark III

PRINTING SPECIFICATIONS

Character Sets
Modified IBM® Code Page 850

Print Method
Thermal Transfer
Direct Thermal

Font Modification
Expansion
Rotation

Resolutions
203 dpi
300 dpi

Print Speeds
5 ips
6 ips
4 ips

SOFTWARE & FIRMWARE

2D Barcodes
FIM
Data Matrix
Code 128
QR-Code
TCIF Linked Bar Code 3 of 9 TLC39
Micro PDF 417
GS1 Databar
Aztec
MaxiCode
PDF417

Downloadable Font Type
TrueType
Bitmap
AGFA Intellifont

Linear Barcodes
Telepen
HBIC
Code 93
EAN-8
Code 128
UCC/EAN Code 128
Codabar
Interleaved 2 of 5 with a module 10 checksum and shipping bearer bars
UPC-E
Interleaved 2 of 5 with a module 10 checksum
Plessey
Code 3 of 9
POSTNET
5-digit UPC addendum
2-digit UPC addendum
UPC-A
Interleaved 2 of 5 I 2 of 5
EAN-13

Printer Command Language
PL-E
PL-B
XML-Enabled
PL-I
PL-Z

Image File Format
BMP
PCX

MEDIA

Maximum Media Roll Diameter
127
5

Printer Media Type
Label
Tag Roll

NETWORK

Wireless Communication
WiFi
Bluetooth

Network Specifications
802.11 a/b/g
Bluetooth v2.0

MEMORY & DATA

Memory
8 MB Flash/16 MB RAM

ENVIRONMENTAL

Operating Temperature
4 - 35 °C
40 - 95 °F

SERVICE TERMS

Warranty Duration
1 yr
